vrv::EditorToolkitShared Class Reference

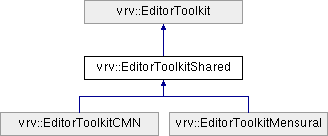

Inheritance diagram for vrv::EditorToolkitShared:
vrv::EditorToolkit vrv::EditorToolkitCMN vrv::EditorToolkitMensural

Classes

struct  State


Public Member Functions

 EditorToolkitShared (Doc *doc, View *view)

bool ParseEditorAction (const std::string &json_editorAction) override
 In child classes, this parses the provided editor action and then performs the correct action.

bool ParseEditorAction (const std::string &json_editorAction, bool commitOnly=false)

- Public Member Functions inherited from vrv::EditorToolkit
 EditorToolkit (Doc *doc, View *view)

virtual std::string EditStatus ()
 Get status of the editor (undo, selection, etc.)

virtual std::string EditResponse ()
 Get response on the last editor function used.

void OptionsChanged ()
 Increase the option change count.


Protected Types

enum  SelectCustom : int8_t { SELECT_NONE = 0 , SELECT_NOTE , SELECT_TEXT_PARENT }

enum  DeleteNavigation : int8_t { DELETE_NO_NAVIGATON = 0 , DELETE_BACKSPACE , DELETE_FORWARD }


Protected Member Functions

void SetEditStatus ()

void ReloadEditStatus (const std::string &statusStr, bool insertMode)

void PrepareUndo (bool ignoreInsertMode=false)

std::string GetCurrentState ()

bool ReloadState (const State &state)

void TrimUndoMemory ()

bool CanUndo () const

bool CanRedo () const

bool Undo ()

bool Redo ()

void ClearContext ()

bool ContextForElement (std::string &elementId)

bool ContextForScores (bool updateResponse)

bool ContextForSections (bool updateResponse)

bool GetScoreDef ()

bool SetScoreDef (const std::string scoreDef)

void ContextForObject (const Object *object, jsonxx::Object &element, bool recursive=false)

void ContextForObjects (const ArrayOfConstObjects &objects, jsonxx::Array &siblings)

void ContextForReferences (const ListOfObjectAttNamePairs &objects, jsonxx::Array &links)

ArrayOfConstObjects GetScoreBasedChildrenFor (const Object *object)

void CollectReferringObjects (const Object *element, std::set< std::string > &toDelete, std::set< const Object * > &visited)

void PostProcessDeleteObjects (const Object *element, std::set< std::string > &toPostProcess)

void PostProcessDelete (const std::string &elementId)

void PostEditRestriction (Object *element)

void MoveCursor (LayerElement *element, bool maintainChordMode=false)

data_ACCIDENTAL_WRITTEN GetAccidBefore (const LayerElement *element, data_PITCHNAME pname, int oct)

std::pair< data_ACCIDENTAL_WRITTEN, bool > GetActualAccid (Object *element, data_ACCIDENTAL_WRITTEN accid)

const Measure * GetPreviousMeasure (const Measure *measure)

const Staff * GetPreviousStaff (const Staff *staff)

const Layer * GetPreviousLayer (const Layer *layer)

const Measure * GetNextMeasure (const Measure *measure)

const Staff * GetNextStaff (const Staff *staff)

const Layer * GetNextLayer (const Layer *layer)

bool Chain (const jsonxx::Array &actions)
 Parse JSON instructions for experimental editor functions.

bool ParseContextAction (const jsonxx::Object &param, std::string &elementId, bool &scores, bool &sections)

bool ParseDeleteAction (const jsonxx::Object &param, std::string &elementId, DeleteNavigation &navigation)

bool ParseDragAction (const jsonxx::Object &param, std::string &elementId, int &x, int &y)

bool ParseKeyDownAction (const jsonxx::Object &param, std::string &elementid, int &key, bool &shiftKey, bool &ctrlKey)

bool ParseInsertAction (const jsonxx::Object &param, std::string &elementName, std::string &elementId, std::string &insertMode)

bool ParseInsertControlAction (const jsonxx::Object &param, std::string &elementName, std::string &startId, std::string &endId)

bool ParseNavigate (const jsonxx::Object &param, std::string &elementId, int &direction)

bool ParsePropertiesAction (const jsonxx::Object &param, std::string &scoreDef)

bool ParseResetCursorAction (const jsonxx::Object &param, bool &maintainChordMode)

bool ParseSelectAction (const jsonxx::Object &param, std::string &elementId, bool &secondary, SelectCustom &custom)

bool ParseSetAction (const jsonxx::Object &param, std::string &elementId, std::string &attribute, std::string &value)

bool ParseSetCursorAction (const jsonxx::Object &param, std::string &elementId, Cursor::InputMode &inputMode, bool &chordMode)

bool ParseUpdateCursorAction (const jsonxx::Object &param, bool &restMode, bool &chordMode, Cursor::TieMode &tieMode)

bool ParseUpdatePitchAction (const jsonxx::Object &param, std::string &elementId, data_PITCHNAME &pname, int &oct, data_ACCIDENTAL_WRITTEN &accid, int &midi)

bool SetCursor (std::string &elementId, Cursor::InputMode inputMode, bool chordMode)
 Experimental editor functions.

bool UpdateCursor (bool restMode, bool chordMode, Cursor::TieMode tieMode)

bool ResetCursor (bool maintainChordMode)

bool Delete (std::string &elementId, DeleteNavigation navigation)

bool Drag (std::string &elementId, int x, int y)

bool InsertControl (std::string &elementName, std::string &startId, std::string &endId)

bool KeyDown (std::string &elementId, int key, bool shiftKey, bool ctrlKey)

bool Navigate (std::string &elementId, const int &direction)

bool Select (std::string &elementId, bool secondary, SelectCustom custom)

bool Set (std::string &elementId, const std::string &attribute, const std::string &value)

bool UpdatePitch (std::string &elementId, data_PITCHNAME pname, int oct, data_ACCIDENTAL_WRITTEN accid, int midi)

- Protected Member Functions inherited from vrv::EditorToolkit
void ResetSelect ()

bool AppendChild (std::string &elementId, const std::string &elementName, bool unique)

bool InsertBefore (std::string &elementId, const std::string &elementName)

bool InsertAfter (std::string &elementId, const std::string &elementName)

Object * GetElement (const std::string &elementId)

Object * PrepareInsertion (Object *parent, const std::string &elementName)

Object * ResolveElement (std::string &elementId, bool chain=true)

bool InsertMode () const


Protected Attributes

bool m_undoPrepared

std::deque< State > m_undoStack

std::deque< State > m_redoStack

size_t m_undoMemoryUsage = 0

EditorTreeObject * m_scoreContext

EditorTreeObject * m_sectionContext

EditorTreeObject * m_currentContext

- Protected Attributes inherited from vrv::EditorToolkit
std::string m_chainedId

std::string m_selectionId

ClassId m_selectionClassId

std::string m_selectionSecondaryId

Cursor * m_cursor

Doc * m_doc

View * m_view

jsonxx::Object m_editStatus

jsonxx::Object m_editResponse

int m_options
 Record option changes


The documentation for this class was generated from the following file:
